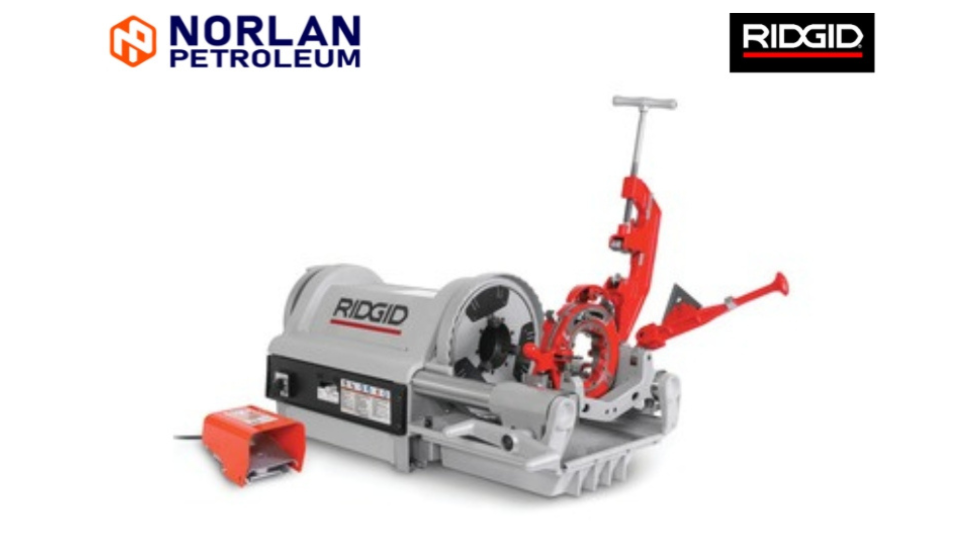

The Model 1224 Pipe Threader threads a wide range of pipe including black, galvanized and plastic-coated pipe, together with stainless steel, IMC and heavy-wall conduit, as well as rod up to 30 Rockwell C



Features

An induction motor helps minimize noise. A special capacitor-start / capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced. 1/4"-2" Universal Die Head; 2 1/2"-4" receding die head allows cutting of tapered or straight NPT/NPSM or BSPT/BSPP threads. Constant and proper lubrication of dies and workpiece with through-head oiling.

Specifications

Nominal Pipe Capacity 1/4"-2" (6mm-100mm) @ 36 RPM, 2-1/2"-4" (65mm-100mm) @ 12 RPM, 4"-6" (100mm-150mm) with 161 Geared Threader. Bolt Capacity 1/4"-2" (6mm-50mm). Motor Control Reverse/off/forward, heavy-duty rotary-type and integral foot switch. Gear Box Two-speed gear box with a 3:1 ratio. Chuck Hammer-type with replaceable rocker-action jaw inserts. Rear Centering Device Cam action. Oiling Pump Self-priming, gerotor-type, automatic-reversing, constant-flow. Oiling Through die head

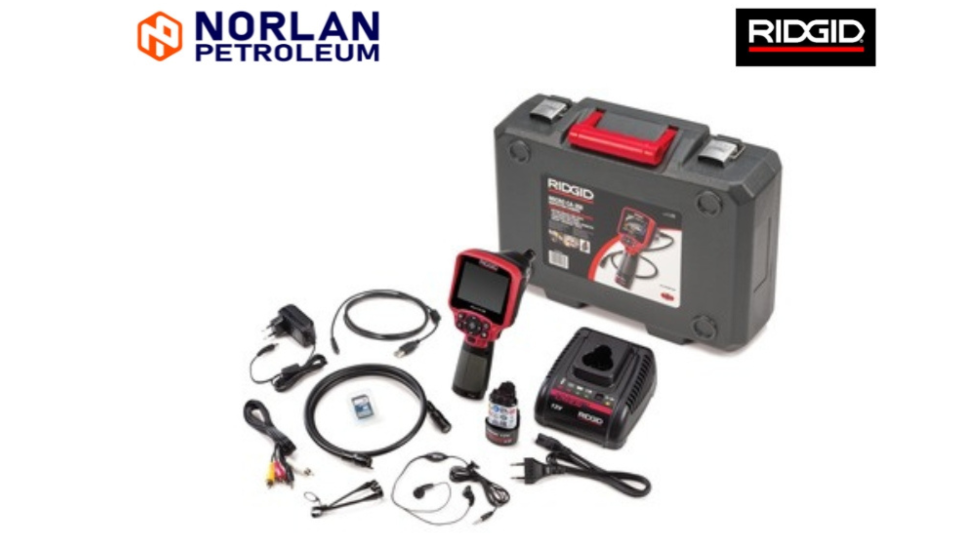

micro CA-350 Inspection Camera

Inspection and documentation made easy with the RIDGID micro CA-350 Inspection Camera, now with 12V power.

Features

Easily records still images and videos for job reporting Ability to extend reach up to 100’ with small diameter SeeSnake® reels (microReel™, nanoReel®, microDRAIN®) 12V rechargeable Lithium-ion battery provides longer runtime for extended inspections Includes a durable blow-molded case for protective storage and transportation Interchangeable camera heads for smaller spaces and longer reaches

Specifications

Display 3.5" (90mm) Color TFT Camera Diameter 0.7" to 11/16" (17mm) Lighting 4 LEDs with adjustable brightness Cable Reach 3' (0,9m) (Expandable to 30' with optional extension, also compatible with microDRAIN®, microReel™ and nanoReel®) Images JPG 640x480 Resolution Video MP4 640 x 480 Resolution External Memory SD Card up to 32 GB (8GB SD card included) Power Source Rechargeable 12V Li-Ion Battery Includes micro CA-350 with 17mm imager, battery, charger, USB cable, hook, magnet and mirror accessories, RCA cable, AC adapter, headset with microphone, 8GB SD card
Includes: micro CA-350 with 17mm imager, battery, charger, USB cable, hook, magnet and mirror accessories, RCA cable, AC adapter, headset

KennedyPro

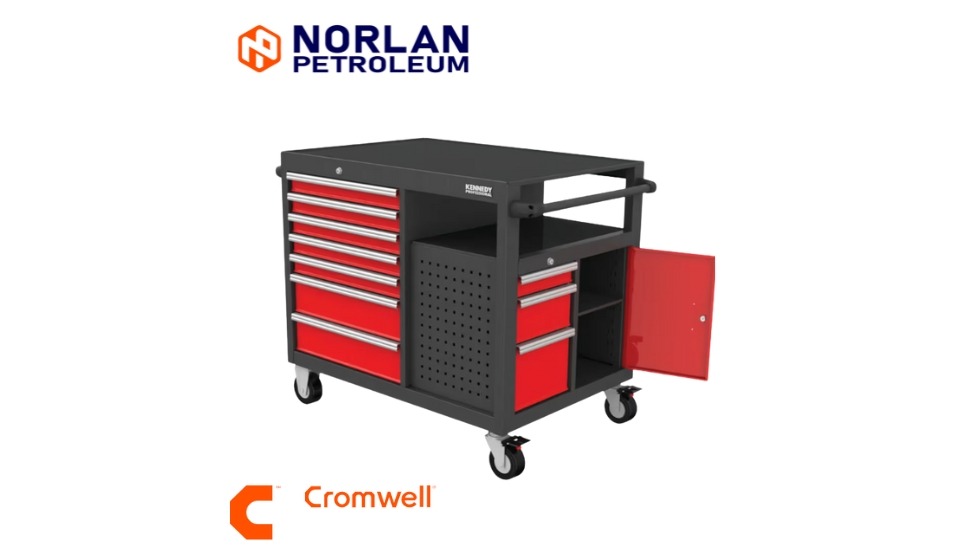

 Service Cart, Ultimate, Red/Grey, Steel, 10-Drawers, 845 x 1123 x 791mm, 550kg Capacity



This mobile workstation is part of our Ultimate Range which combines robust performance with stylish appearance and superior finish. Steel construction with 45mm ball bearing drawer slides and steel side handles. Anti-rust and solvent resistant powder coat finish. Quick lock function to prevent unwanted opening of drawers. Perforated sides for hanging accessories. Fitted with 2 x fixed castors and 2 x swivel castors with full brakes. Max drawer load: 40kg.



• All steel construction with Anti-rust and solvent resistant
• 45mm ball bearing drawer slides
• Quick lock function
• Perforated sides for hanging accessories
• Fitted with 2 x fixed and 2 x swivel castors with full brakes
• Max drawer load: 40kg
• Overall Dimensions: (HxWxL) 854x791x1123mm



Typical Applications
• Portable option for using and transporting tools in work environments



Notes
• The compatible tool chest is KEN5942240K



Attribute

Value

Brand

KennedyPro

Coating

Powder Coating

Colour

Red/Grey

Drawer Load Capacity

45kg

EAN

5036140329508

ECLASS Code

21100490

Magnetic Adhesion

No

Material

Steel

Maximum Weight Capacity

550kg

MFR Part No.

BTD-450101D

Mobility

125mm Ø Casters with Brakes

Number of Drawers

10

Overall Height

845mm

Overall Length

1123mm

Overall Width

791mm

Product Range

Ultimate

Product Type

Service Cart

Roll Weight

450kg

Security

Fully Lockable

UNSPSC Code

24112401

Weight

120kg
